Chattanooga DIRECT TENS Pain Relief Electrical Stimulator

The Direct TENS is a simple product for pain management through transcutaneous electrical stimulation.

Its easy of use perfectly meets the requirements of patients with pain.

The device includes multiple analgesic applications and allows by a simple click to access a program adapted to the pain zone.

• 2 Channels of stimulation output
  * 13 Pre-set programs including 5 quick select programs for ease of use
  * Waveform: Asymmetrical biphasic, 100% compensated
  * Constant voltage up to resistance of 1000 ohms
  * Maximum amplitude: 40mA @ 1000 ohms, 250µsec
  * Pulse Duration: up to 250 μsec
  * Frequency: up to 1,000 Hz
  * Power Source: 2 x 1.5V AA Batteries or 2x 1.2V AA rechargeable batteries
  * Modern design and soft push buttons for comfortable use
  * Adjustable timer
  * Unit features include 5 stimulation programs - Pulse - Burst - Continuous - Mixed Frequency - Multi-modulation

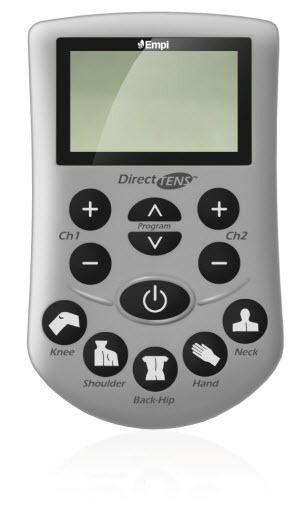

  * Easy to read LCD display and convenient easy to use controls

• Main Power	2 x 1.5V AA Batteries or 2x 1.2V AA rechargeable batteries
  Electrical Safety Class	Class IIa, Type BF
  Safety Tests	EC 60601-1, IEC 60601-1-2
  Dimensions	110x70x30 mm
  Weight	165 g (Including batteries)
